Cattle Yard Equipment
Now available at The Haymarket in La Trobe Street
Cattle Crush Range

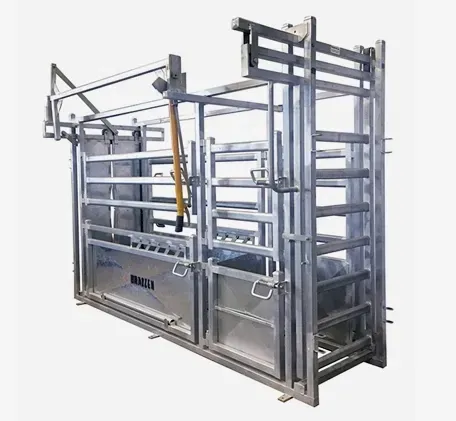

Standard Cattle Crush
Squeeze Chute
Our Standard Cattle Crush is ideal for the farmer to gain easy access to cattle with a minimum of stress to the animal.
Specifications
- Galvanised construction
- Sheeted head bail & bottom side gates for operator & animal safety
- Auto Lock rear sliding gate innovative silent operation
- Adjustable rear handle
- Walk through vet section
- Long ratchet rump bar mechanism
Additional Specifications
- Inside measurements: 3050mm L x 700mm W x 2030mm H
- With the vet gate closed: 2130mm L x 700mm W x 2030mm H

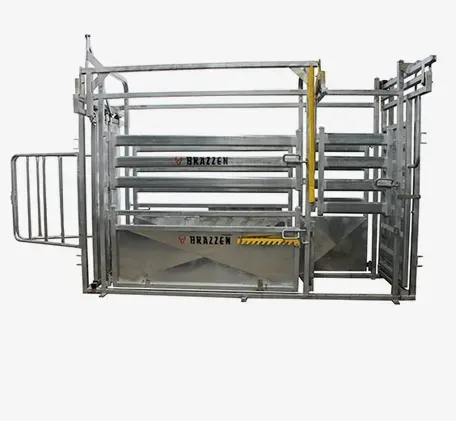

Premium Cattle Crush
Premium Squeeze Chute
The Premium Squeeze Chute is manufactured to high standards, with sturdy construction and anti-bruise rails.
Specifications
- Anti bruise oval rail
- 3mm gauge steel frame
- Walk through vet section
- Baulk gate
- Kick latch
- Rump squeeze
- Sheeted sliding gate
- Long rachet rump bar mechanism
- Supplied in flat pack
Addition Specifications
- L 3350mm x 700mm x H 2030mm

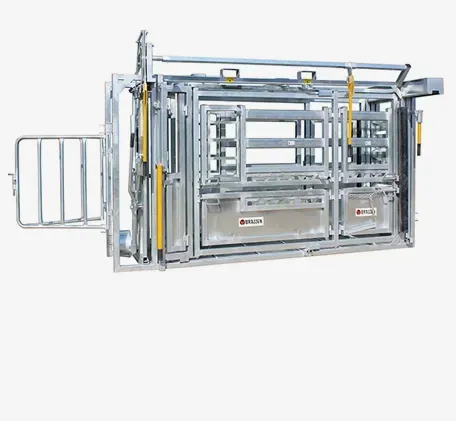

Heavy Duty Squeeze Crush
Heavy Duty Squeeze Chute
The Heavy Duty Cattle Crush is manufactured to high standards, with sturdy construction and anti-bruise rails.
Specifications
- Vet section
- Baulk gate
- Kick latch
- Rump squeeze
- Silent slides on the head bale and sliding gate
- Floor 2/10” checker plate
- Scale fittings
- Sheeted sliding gate
Addition Specifications
- L 3790mm x 870mm x H 2155mm

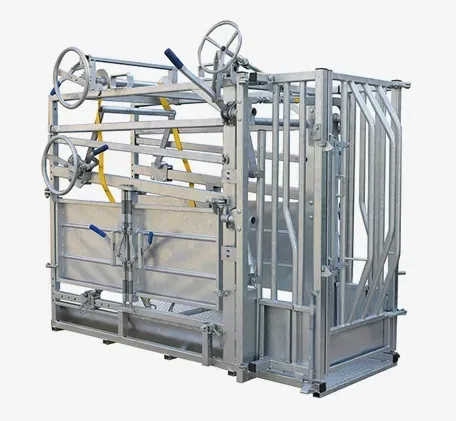

Dairy Cattle Crush
Specifications
- 2 side doors on each side located below horizontal rails which assist with access to the side of the animal
- Top wheel designed to adjust the anti-kick bars
- 2 upper rails on both sides that are removable to gain access to the animal
- Lower wheel operates the adjustable rotating rump bar housed from a fixed sloping horizontal rail to keep the animal
- Fully welded plate floor to help keep the animals feet inside the crush when doors are open
- Pallet lifting lugs at top of crush
Addition Specifications
- L 2740mm x 838mm x H 1900mm

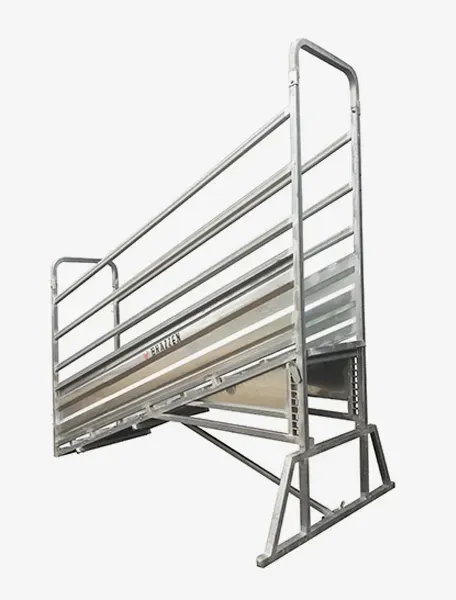

Cattle Loading Ramp
The Cattle Ramp has been designed and constructed to minimise stress and bruising to stock while loading. The sturdy construction helps to maintain stability whilst loading. The ramp height is adjustable from trailer to truck. Our loading ramp can also be ordered with a handler’s walkway.
Specifications
- Pre galvanised construction
- Anti-slip treads
- Fully enclosed floor to prevent cattle from baulking
- 1745mm wide front legs for stability
- Adjustable floor, 10 positions
- Man walkway (optional extra)
- WPC board floor (optional extra). The WPC board is a composite board so it will never get termites or rot.
Additional Specifications
- Materials: Pre-galvanized Q195 - Q235 steel
- Finishes: 80g pre galvanised per metre2
- Measurements: 3300mm L x 750mm W x 3000mm H
Cattle Panel Range
Budget Panel
This middle of the range panel is equipped with:
- Oval 60 x 30 (2.36” x 1.18”) rails
- 2 SHS 40 x 40 (1.57”x 1.57”) posts
- 4 easy to connect lugs
- 2 holes for ground pins
All panels are available in 5 and 6 rail
Standard Panel
This strong heavy duty panel is equipped with:
- Oval 70 x 45 (2.75” x 1.57”) rails
- 2 SHS 50 x 50 (2” x 2”) posts
- 4 easy to connect lugs
- 2 holes for ground pins
All panels are available in 5 and 6 rail
Premium Panel
This strong heavy duty panel is equipped with:
- Oval 115 x 42 (4.52” x 1.65”) rails
- 2 SHS 50 x 50 (2” x 2”) posts
- 4 easy to connect lugs
- 2 holes for ground pins
All panels are available in 5 and 6 rail
Race Bow Range
Race Bow
The Cattle Race Bow is used to stabilise the race during the movement of stock.
Specifications
- Galvanised construction
- Assists with maintaining a sturdy race
- Robust construction
- Designed to improve speed of stock flow
Additional Specifications
- Materials: Pre-galvanized Q195 - Q235 steel
- Finishes: 180g Cold Galvanised per m2
Suggestion for use
- 1x Sliding Gate
- 1x Head Bale
- 1x Race Bow
- 4x Standard Panels
Adjustable Race Bow
Specifications
- Galvanised construction
- Reduces turning in the race depending on size of animal
- Assists with maintaining
- A sturdy race
- Robust construction
- Designed to improve speed of stock flow
Walkway Race Bow
Specifications
- Assists with maintaining a sturdy race
- Creates a safe work area
- Designed to improve speed of stock flow
Head Bale & Cattle Gates
Head Bale
Including a Head Bale in your race system allows you to be able to handle cattle while reducing movement and risk of injury.
Specifications
- Galvanised construction
- Robust construction
- Animal friendly
- Handy lugs for ground pinning
- Ideal for use with 2 cattle panels and a sliding gate to create a budget crush
- Head bale is 750mm inside and 850mm outside
Additional Specifications
- Finishes: 120g Cold Galvanised per m2
Standard Cattle Gate
The Standard Cattle Gate is manufactured to high standards, with sturdy construction and anti-bruise rails.
Specifications
- Galvanised construction
- Robust construction
- Animal friendly
- Handy lugs for ground pinning
- Designed to improve speed of stock flow
Additional Specifications
- Materials: Pre-galvanized Q195 - Q235 steel
- Finishes: 180g Cold Galvanised per m2
Sliding Gate
The Sliding Race Gate is easy and smooth to use and ideal to control the flow of stock.
Specifications
- Galvanised construction
- Robust construction
- Animal friendly
- Handy lugs for ground pinning
- Designed to improve speed of stock flow
- Ideal for use with 2 cattle panels and a sliding gate to create a budget crush
Additional Specifications
- Materials: Pre-galvanized Q195 - Q235 steel
Suggestion for use
- 1x Sliding Gate
- 1x Head Bale
- 2x Standard Panels
Manway Panel Gate
Manway Panel Gates allow easy and quick access to stock and yards.
Specifications
- Galvanised construction
- Robust construction
- Animal friendly
- Handy lugs for ground pinning
- Designed to improve speed of stock flow
- Ideal for use with 2 cattle panels and a sliding gate to create a budget crush
Additional Specifications
- Materials: Pre-galvanized Q195 - Q235 steel
- Finishes: 180g Cold Galvanised per m2
Access Gate
Access Gates allow easy movement in and out of yards without the risk of stock escaping.
Specifications
- Galvanised construction
- Robust construction
- Animal friendly
- Handy lugs for ground pinning
- Designed to improve speed of stock flow
- Ideal for use with 2 cattle panels and a sliding gate to create a budget crush
Additional Specifications
- Materials: Pre-galvanized Q195 - Q235 steel
- Finishes: 180g Cold Galvanised per m2

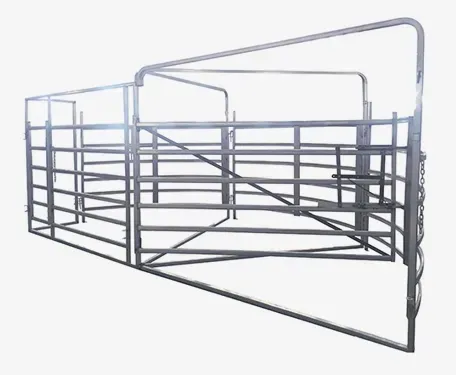

Force Yard
The Use of Force Yards will help to increase the flow and productivity of your yards.
Specifications
- Galvanised construction
- Robust construction
- Easy-Flow System
- Animal friendly
- Handy lugs for ground pinning
Additional Specifications
- Materials: Pre-galvanized Q195 - Q235 steel
- Finishes: 120g Cold Galvanised per m2
3 Way Draft
Cattle 3 Way Draft
Specifications
- Galvanised construction
- Robust construction
- Animal friendly
- Handy lugs for ground pinning
- Designed to improve speed of stock flow
- Easy operation
